Current project · Detailed design · KSAAl Ha’er recycled-water transmission network

Transient surge analysis for a 20 km, DN 2200 carbon-steel main, including five critical operating scenarios.

Engineering partner: WABAGEnd client: NWC
Core expertiseIntegrated water-infrastructure engineering

Water supply · Recycled water · Wastewater · Stormwater · Firefighting · Rising main surge analysis · 1D/2D flood modelling · Utility clash analysis · Design NOC · BOQ and specifications · Bid evaluation (technical and commercial) · Tender support

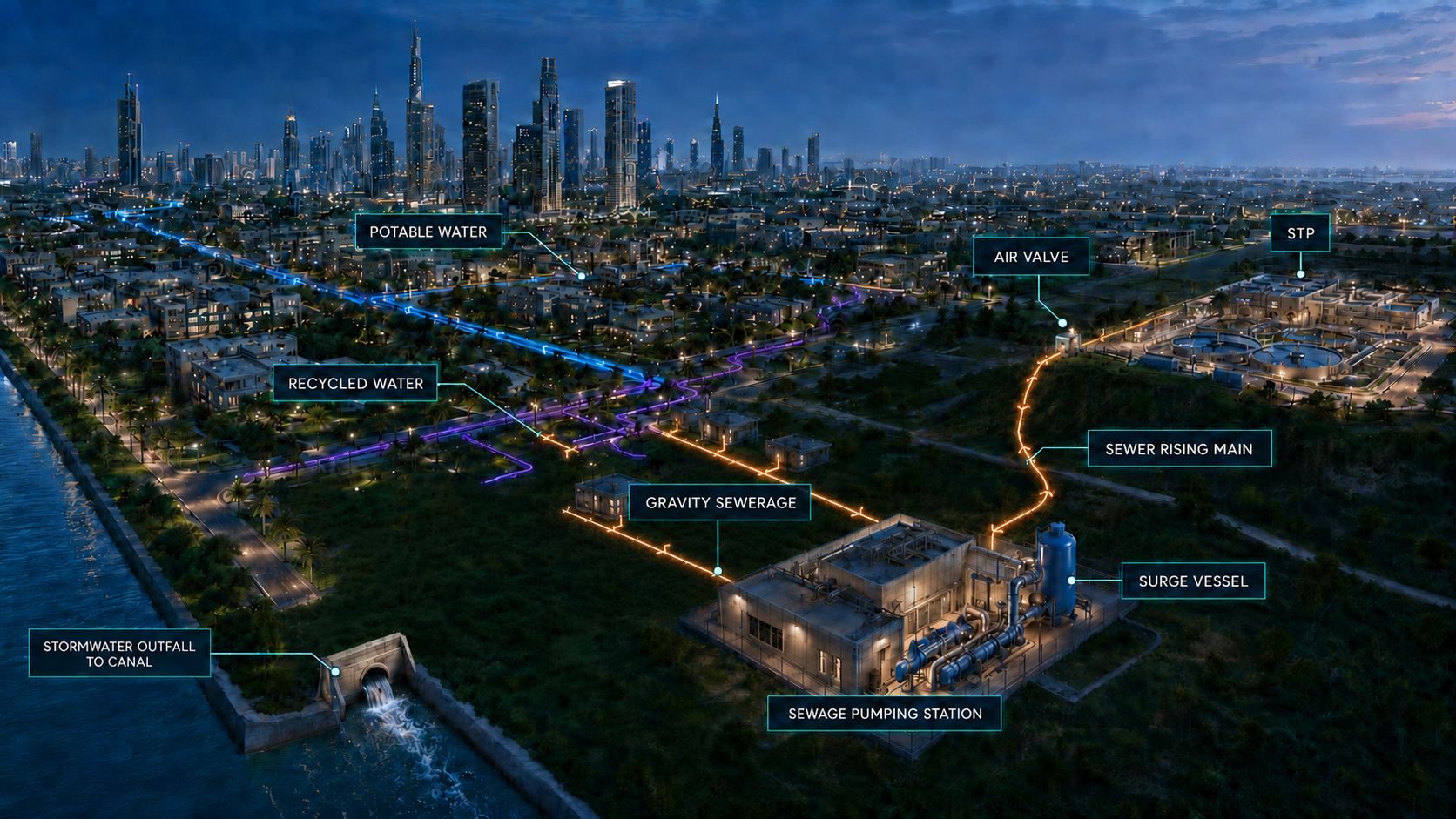

Engineering scope

How each system
is designed.

Critical checks, engineering decisions and deliverables—presented clearly.

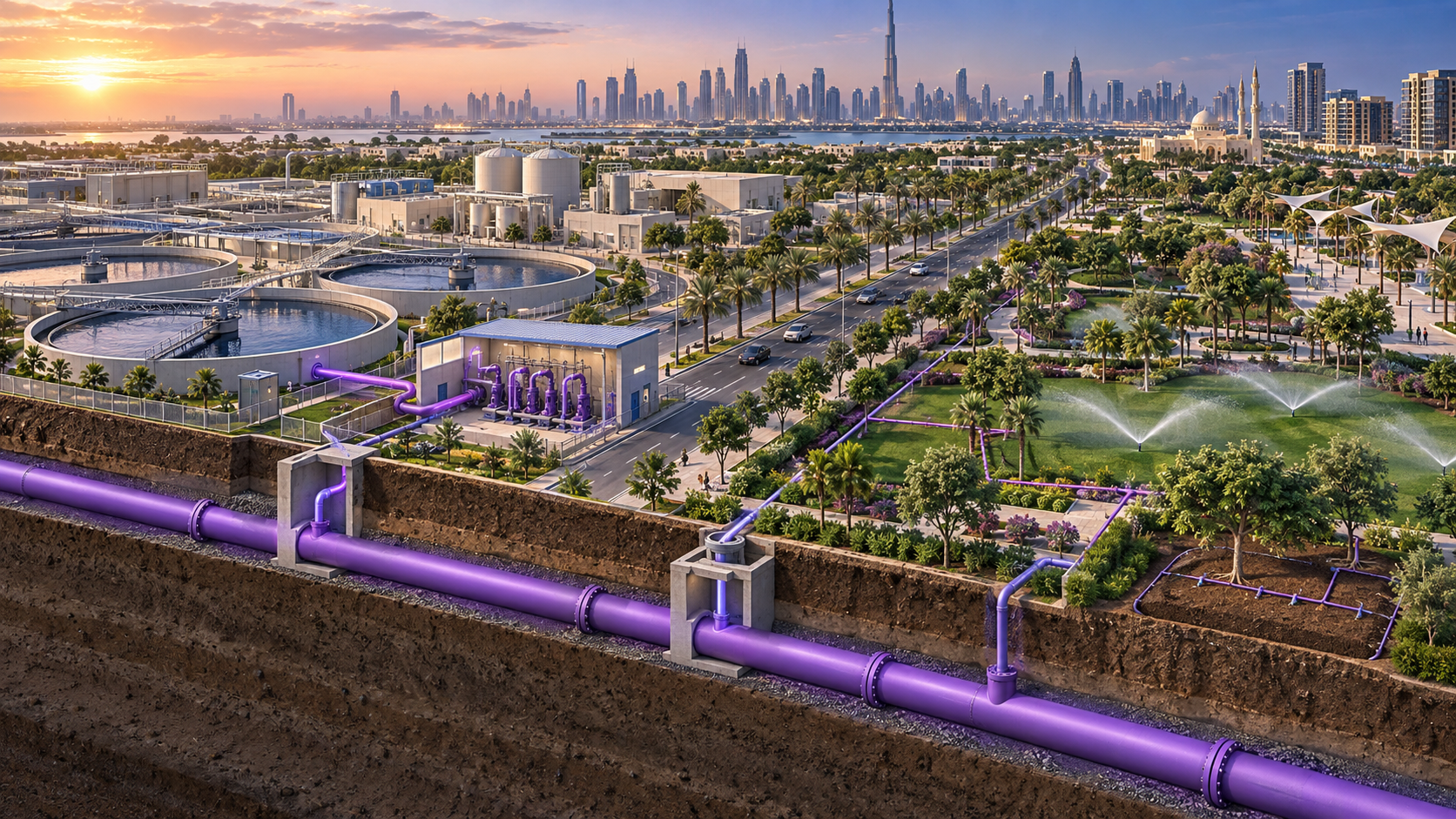

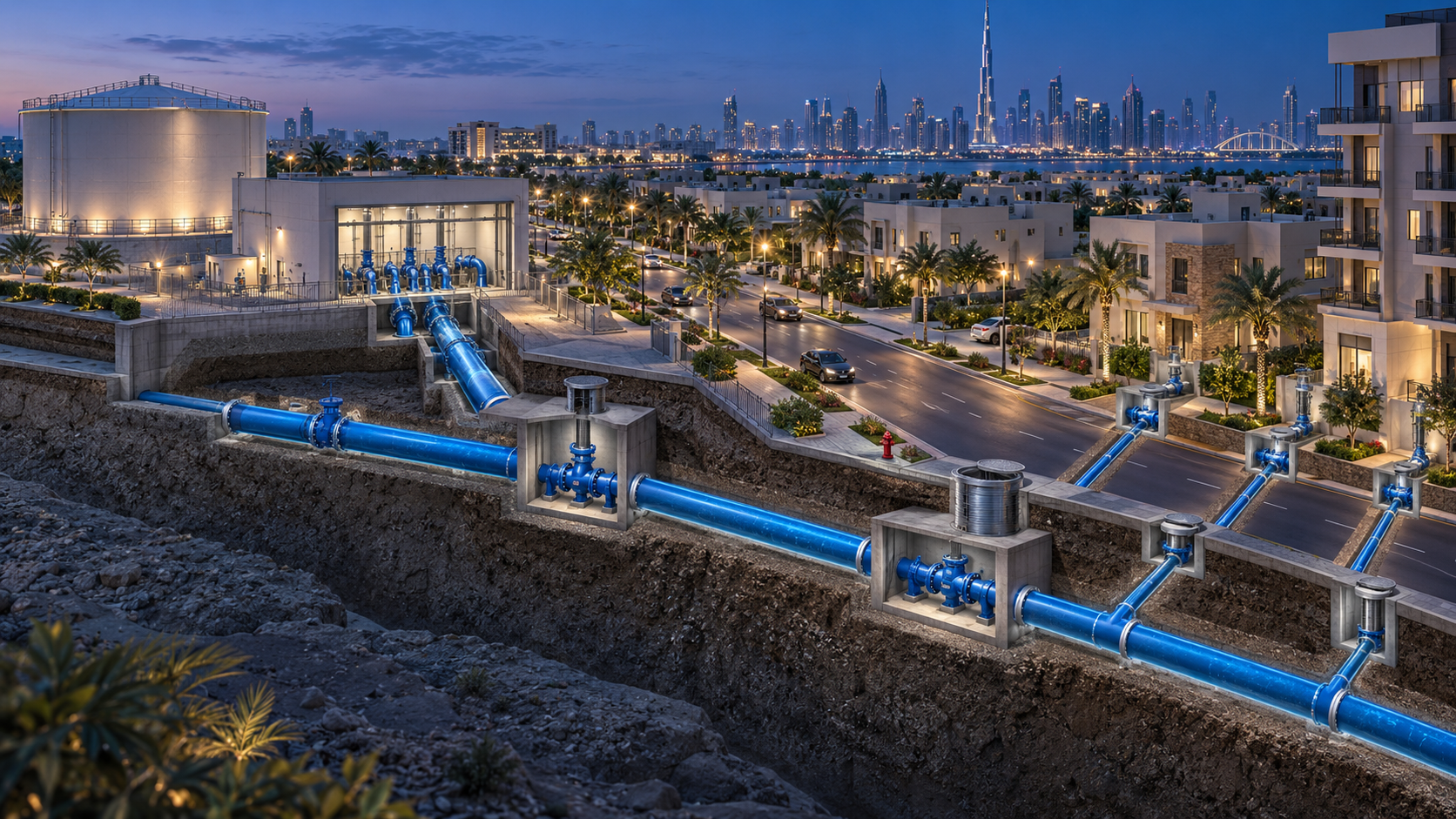

Potable-water pumping, trunk-main and distribution-network designRecycled-water network supplying tertiary landscape irrigationPotable + recycled water
01 / Pressurised networks

Potable, recycled & plant water

A reliable network that delivers the required flow and pressure at every critical node.

DiameterMaterialVelocityPressureFire flow
  • ADD, MDD, peak-hour, fire-flow and future-demand scenarios
  • Diameter selection from velocity, headloss, pressure and resilience checks
  • Minimum and maximum pressure verification to the applicable authority criteria
  • DI, HDPE, carbon steel or GRP selection by pressure, diameter, soil and corrosion risk
  • Pumps, tanks, pressure zones, PRVs, isolation and air-valve locations
Engineering outputs

Design basis · calibrated hydraulic model · HGL · pressure and velocity maps · pump and storage schedules · network plans/profiles · valve and chamber details · BOQ and specifications.

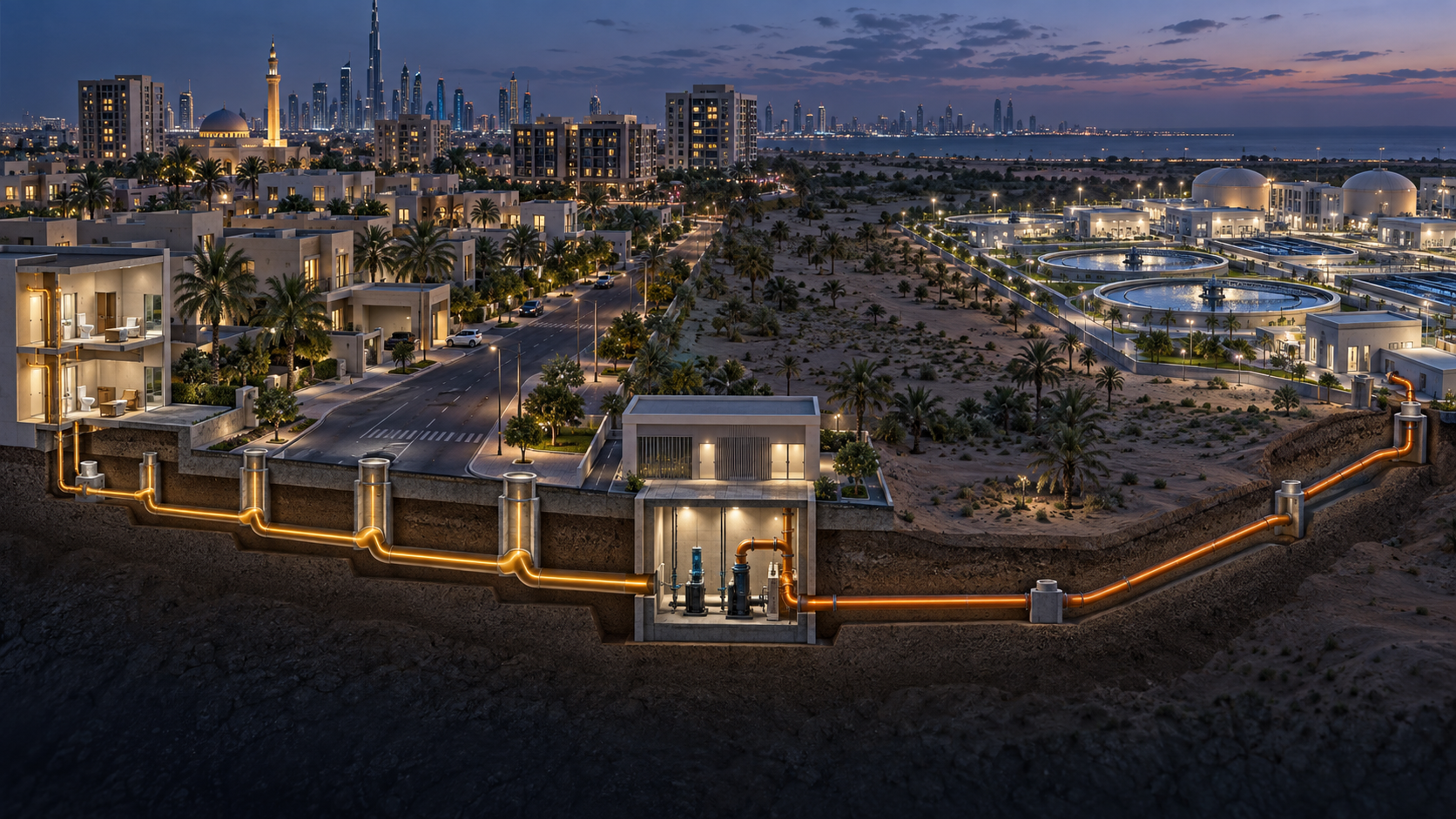

Wastewater collection from buildings through gravity sewers and a rising main to the treatment plantWastewater
02 / Gravity + rising mains

Sewerage & wastewater

Gravity and pumped systems sized for present loading, future growth and operational reliability.

Peak flowSloped/DVelocityHGL
  • Population, land-use, sewage-return, infiltration and inflow assessment
  • Average and peak flow using Babbitt, Harmon or authority factors
  • Diameter and gradient selection using d/D, capacity and minimum self-cleansing criteria
  • Maximum velocity, Froude number, surcharge, cover and hydraulic-grade checks
  • Manholes, drops, pump stations, wet wells and rising-main duty points
Engineering outputs

Flow schedule · hydraulic model · longitudinal sections · HGL and surcharge review · manhole schedules · pump duty · rising-main calculations · drawings, BOQ and specifications.

Hydraulic profile for stormwater and flood modelling1D / 2D flood modelling
03 / Rainfall + runoff

Stormwater drainage & flood

Catchment-led design that manages underground capacity and surface flood risk together.

RationalSCS-CN1D2DFlood depth
  • Catchment boundaries, imperviousness, runoff coefficients and time of concentration
  • IDF rainfall, return period, temporal profile and climate allowance
  • Rational Method or dynamic SCS-CN rainfall-runoff modelling
  • Inlet, pipe, channel, culvert, manhole, outfall and HGL capacity checks
  • 2D flood depth, velocity, hazard and exceedance-flow-path assessment
Engineering outputs

Catchment plan · hydrology calculations · 1D/2D model · network schedule · flood maps · HGL profiles · critical-location register · drainage layouts and profiles.

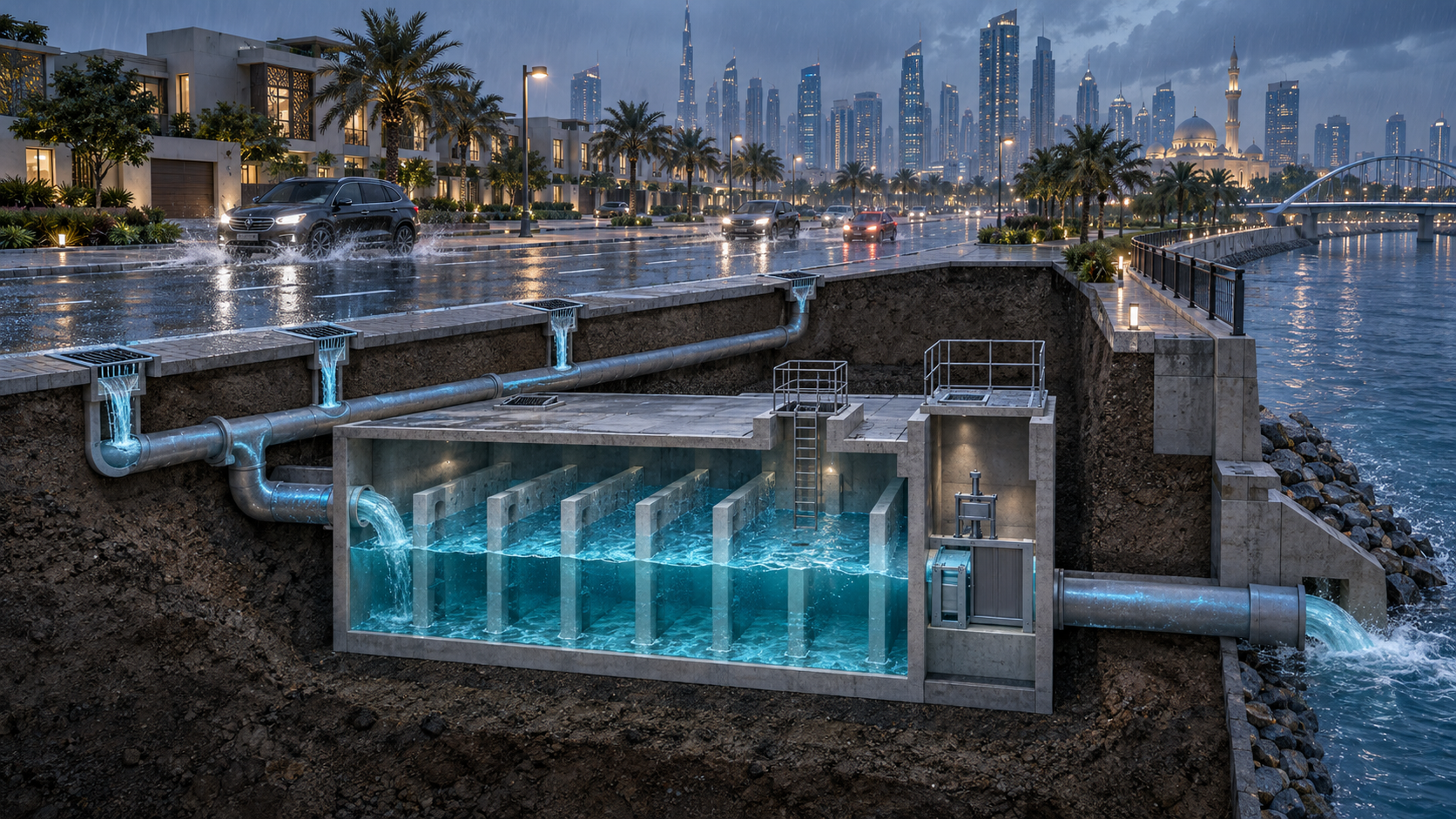

Stormwater gullies, main drainage network and underground attenuation storage with controlled dischargeAttenuation storage
04 / Storage + controlled discharge

Attenuation tank design

Storage sized to hold the critical storm and release water within the permitted outfall rate.

VolumeRoutingFreeboardOutflow control
  • Allowable discharge, receiving-system level and tailwater confirmation
  • Inflow hydrograph and critical-duration storm assessment
  • Storage routing, required volume, operating level and freeboard
  • Orifice, weir, vortex control or pumped-discharge selection
  • Emergency overflow, access, ventilation, silt management and maintenance needs
Engineering outputs

Storage curve · inflow/outflow hydrographs · tank sizing · control-structure calculations · pump duty where required · GA, sections, MEP interfaces, BOQ and specification.

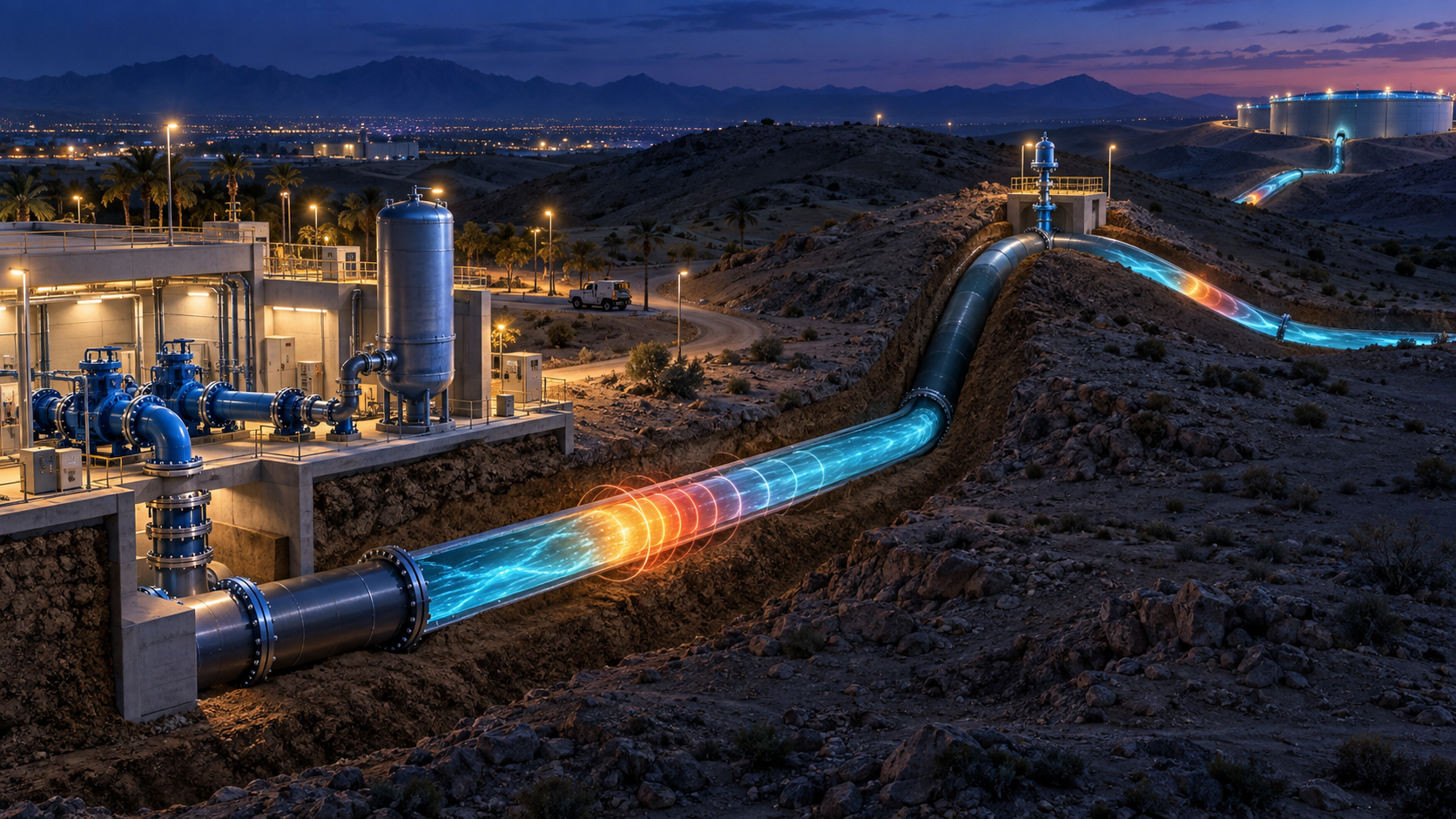

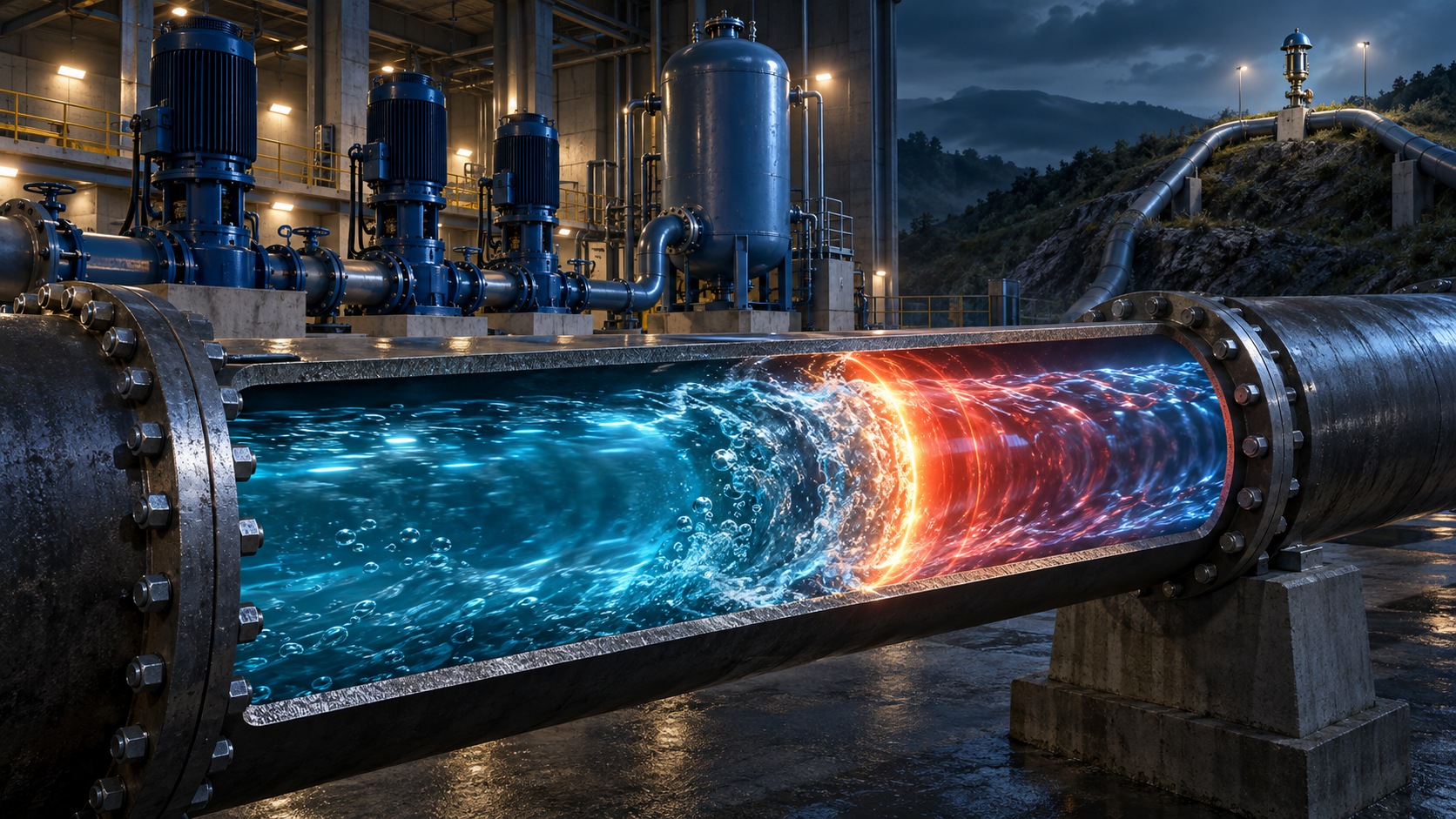

Transient pressure wave, surge vessel and high-point air valve protecting a large-diameter rising mainWater-hammer pressure wave inside a large-diameter pipeline with surge-protection equipmentWater Hammer & Surge Protection
05 / Transient hydraulics

Surge analysis for rising mains

Transient protection for water, wastewater and stormwater pressure mains from DN 500 to DN 3000+.

Pump tripValve closureAir valveSurge vessel
  • Steady-state model, pump curves, operating levels and boundary validation
  • Power failure, pump trip/start, valve closure and emergency operating cases
  • Wave speed, pipe elasticity, pump inertia and control-valve characteristics
  • Maximum pressure, minimum pressure, vapour risk and transient envelope checks
  • Air/vacuum valves, surge vessels, flywheels, NRVs and control-logic optimization
Engineering outputs

Transient model · worst-case envelope · node time histories · protection-option comparison · air-valve schedule · surge-vessel sizing · operating recommendations and report.

BIM utility coordination and clash-detection modelUtility coordination
06 / Corridors + approvals

Utility corridors, clashes & NOC

Buildable wet-utility corridors coordinated with roads, structures and dry utilities.

RTAUCDMClearancesClash matrixNOC
  • Horizontal and vertical corridor planning to local authority requirements
  • Cover, separation, crossing, access and protection-detail checks
  • Integrated 3D/BIM model coordination across wet and dry utilities
  • Clash detection, issue register, ownership and resolved levels
  • Design NOC and construction NOC drawings with comment resolution
Engineering outputs

Coordinated plan/profile · corridor cross-sections · clash report · utility matrix · crossing and protection details · authority submission drawings · response-to-comments register.

Utility infrastructure construction and site coordinationDesign to construction
07 / Complete delivery support

Detailed design, cost, tender & construction

A coordinated package that carries the engineering basis into procurement and site delivery.

DrawingsCostBOQSpecificationsBid evaluation
  • Design reports, calculations, plans, profiles, schedules and standard details
  • Concept and pre-tender estimates, value engineering and risk allowances
  • Measured BOQ, material/workmanship specifications and equipment schedules
  • Bidder queries, addenda, compliance matrix and technical/commercial evaluation
  • RFIs, shop drawings, materials, site changes, testing and as-built support
Engineering outputs

Issue-ready design package · engineer’s estimate · BOQ · technical specifications · tender clarifications · evaluation report · construction-support and close-out records.

Current detailed-design assignment · KSA

Al Ha’er
recycled-water network.

Detailed design · In progress

Transient surge analysis

Surge assessment for a 20 km, DN 2200 carbon-steel recycled-water transmission network in Saudi Arabia.

20 kmNetwork length
DN 2200Pipe diameter
CSCarbon steel
Transient scenarios
01Single pump failure
02All pumps trip
03Controlled pump shutdown
04Pump start-up
05Sudden valve closure
Transient envelopeAir-valve assessmentSurge-vessel assessmentDetailed-design recommendations
